The Data Visualizer is an add-on for O-Matrix that provides an interactive
plot generation and manipulation GUI for O-Matrix. The Data Visualizer enables
the O-Matrix user to create plots directly from O-Matrix scripts, interactively
create and edit and manipulate plots and plot data, and create dynamic HTML-based
solutions.
The Data Visualizer uses the Array Viewer from Intel for displaying
and manipulating plots. Once data or plots are transferred to the Array Viewer
you can use the extensive interactive capabilities of the Array Viewer to
customize plots or manually edit data. The viewer uses OpenGL and sub-sampling
techniques to enable the rendering and manipulation of extremely large data sets.
The Data Visualizer both expands and enhances the plotting capabilities
available in O-Matrix. It can be used in conjunction with, or in place of the

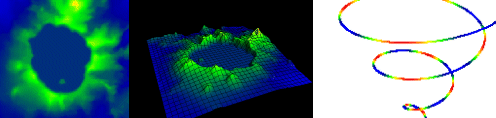

plotting in O-Matrix. Supported plot types include: XY Plot, image plot, contour
plot, 2D vector plot, height (surface) plot, XYZ plot, quad mesh plot and poly
list plot.
The Data Visualizer provides many ease-of-use and enhanced graphic generation
capabilities to the O-Matrix user:
- Interactively create plots of O-Matrix data from O-Matrix programs
- Create two- and three- dimensional plots that can be interactively
rotated, scaled, and zoomed.
- Display and edit data in a scrollable spreadsheet that can display
arbitrarily large data sets
- Inquire about specific plot values using the mouse
- Save data and graphs together in a single compact solution file
- Read, create, and save data in HDF or XML formats
- Display data, plots, and plot attributes in a hierarchical tree
- Use HTML and HTML scripting languages such as JavaScript and VBScript to
create dynamic applications for interacting with O-Matrix data and solutions
- The Array Viewer is a free application from Intel.
System Requirements
- O-Matrix 5.6 or greater
- Windows NT, 2000, or XP
- 15 MB Available Disk Space
|
