EZMESH is a mesh generation program designed for scientists and engineers. It offers a completely integrated environment from which all aspects of the mesh generation process can be directed. For example, using EZMESH you can:
- Build the model geometry
- Import CAD data

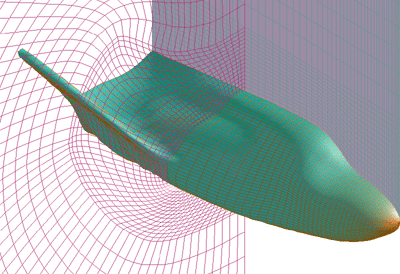

- Generate the structured computational mesh
- Optimize the mesh
- Perform mesh analysis
Each of these functions is activated from a single interface, and each can be controlled using standard tools such as pull-down menus, text boxes, and command buttons.
Based on an advanced 3D windowing scheme, EZMESH’s intelligent GUI guides you through all steps required for generating a computational mesh. Using pull-down menus and a combination of mouse and keyboard inputs, you can quickly define the computational domain and generate a high quality mesh.
Features
General
- Fully interactive menu-driven input
- Multiple window environment
- Mesh-independent geometry
- Automatic mesh generation
- Mesh optimization
- Prompt line help
- Error diagnostics
File management
- Geometric Model Definition
- 1-, 2-, or 3-dimensions coordinate systems
- Body-fitted coordinates (BFC)
- Geometric-based modeling with separate specification for each region of physical extent and number of computational elements (cells)
CAD Data Import
- CAD data import (IGES)
- Wireframe
- NURBS surfaces
- Untrimmed NURBS surface processing
- Fidelity control
Mesh Generation
- Automatic mesh generation
- Generation based on spatial extent
- Local control
- Hyperbolic stretching functions
Mesh Optimization
- Local and global optimization
- Orthogonality control
- Spacing control
- Level of optimization control
Tools and Utilities
- Region slicing
- Cutting planes
- Model display control
- Reference grid
Warning: This product has been discontinued and it may not be available. Please, contact Aertia before placing your order.
|
